Identificador: 2553 Abierta

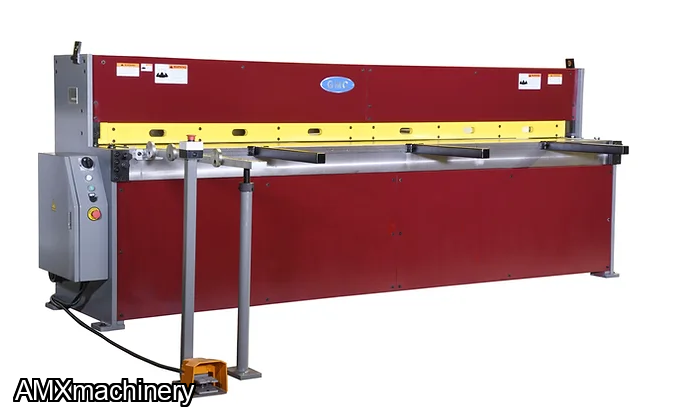

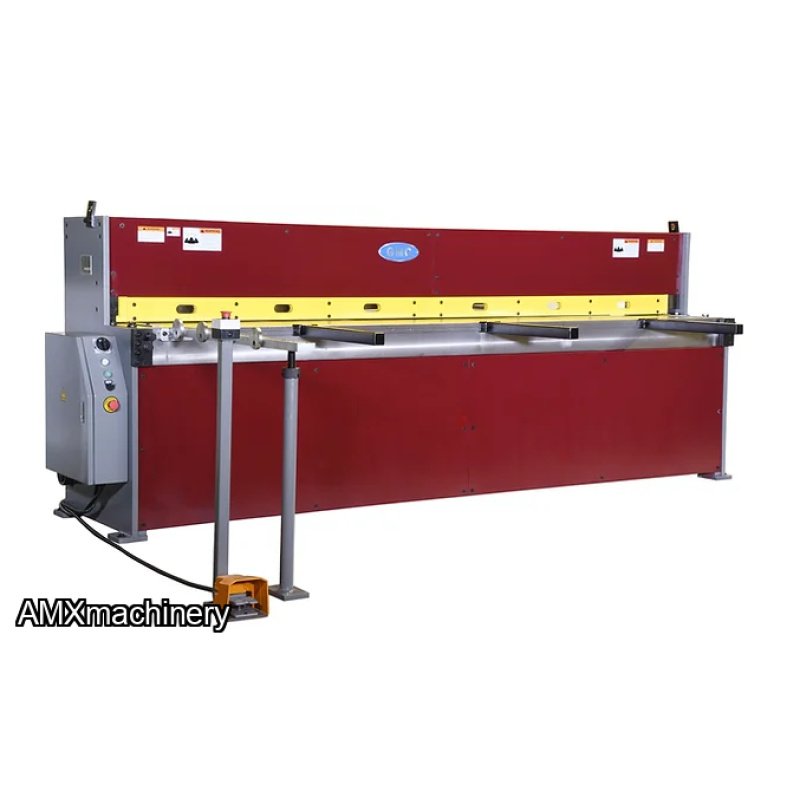

CORTADORA DE METAL HIDRAULICA

CORTADORA DE METAL HIDRAULICA

AMXmachinery1

Contacte al Vendedor
Descripción
PARTE: 2GM-HS-1014MD - CORTADORA DE METAL HIDRAULICA


  • Taiwan machines
  • ISO 9001 certified
  • HD all steel construction for maximum rigidity
  • German logic quiet Rexroth hydraulic system
  • Adjustable stroke from 16-20 strokes per minute
  • 60” long squaring arm with inch / mm scale
  • Spring hold-downs
  • High grade carbon/chrome alloy steel blades and hardened to 62 hrc,
  • 2-edge indexable upper blade and 2-edge indexable bottom blade
  • Full length with full view finger guard
  • Front supports and (2) side gauges
  • Safety type foot pedal control
  • Jog, single continuous auto operation modes
  • One year warranty for parts
  • 26” manual back gauge with inch/metric dual scale & one side operated hand wheel
  • 60” long squaring arm with inch / mm scale
  • 2 each 24” front support arms
  • 2 each 14” Side gauges with inlaid inch/metric dual scale
  • Spring independent hold-downs
  • Full length finger guard
  • Removable safety foot



Cutting capacity:

mild steel

stainless steel

min. thickness



10’ x 14Ga.

10’ x 18 Ga

26Ga.

Blade length

10’1”

Strokes per minute adjustable

14-18

Throat depth

16”

Worktable height

30-1/2”

Front support arm

24”

Back gauge, manual

26” manual

blade rake angle

1.5 degree

oil tank cap.

20gal

Main motor




5-1/2 HP

220V/440V, 3PHASE

Machine weight

5,200 LBS

Machine dimensions

139”X35”52”
